    Self Checking NEMA4/4X 2500Nm Smart Electric Actuator

    Ask Lasest Price
    Brand Name : DCL
    Model Number : DCL E model
    Certification : CE/ROHS/CSA/IP67
    Delivery Time : 7 working days
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS/month
    • Product Details
    • Company Profile

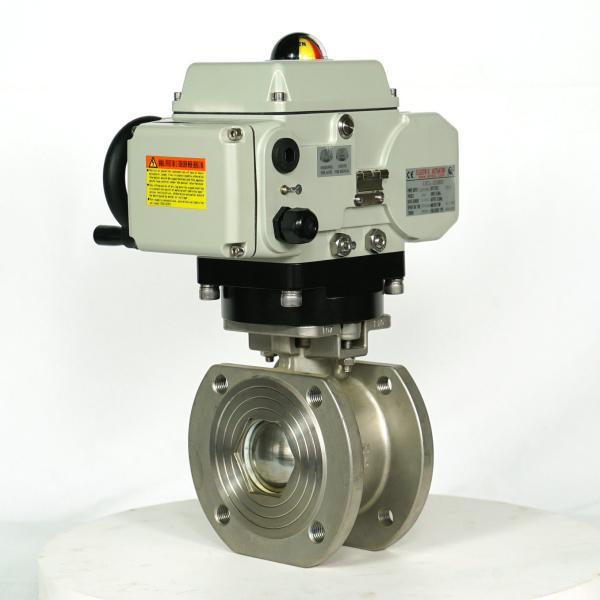

    Self Checking NEMA4/4X 2500Nm Smart Electric Actuator

    Self-diagnosis smart electric actuator with automatically power off function


    DCL-05E~250E parameters.pdf


    Features

    • Unique integral motor/control pack/ housing design with very small size and beautiful appearance
    • Valve position indicator/flat indicator or convex indicator available
    • Over torque protection by torque test function of smart full potted controller
    • Weather proof aluminum alloy enclosure with thermally bonded polyester coating
    • Heavy duty motor with thermal overload protection
    • Self-calibrating and problem self-checking function
    • Standard ISO5211 multi-flange valve mounting
    • Manual override with wrench or handwheel
    • High performance EMC with EFT, ESD and high voltage surge tested for control pack
    • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed
    Specification:
    Product Name:Self Diagnosis Smart Electric Actuator
    Function:Self Calibrating And Problem Self Checking
    Input Signal:4-20mADC/1-5VDC/2-10VDC
    Standard Torque:50Nm To 2500Nm/442in.lbs To 22125in.lbs
    Power Supply:24VAC/110VAV/220VAC/380VAC
    Protection Grade:IP67 NEMA4/4X
    Ambient Temperature:-25℃~+55℃ / -13°F~+131°F
    Output Signal:4-20mADC
    Standard Time:20S To 75S
    Motor Power:6W To 140W
    Total Weight:1.2KG To 20KG
    Installation Angle:360°
    Feature:Automatically Power Off Function

    Description


    DCL modulating type electric has lots of self-diagnosis function such as malfunction of power, position inspection circuit and potentiometer broken, actuator stalled etc. Once malfunction happens, the LED lights on the control pack will flash with different colors, and motor power will be cut off automatically to keep whole system safe.

    Actuators are rigorous tested and certified by CSA per UL and CSA standard. It can suffer 1200 times starts per hour and over total 200000 times starts for whole life cycle with rated torque.
