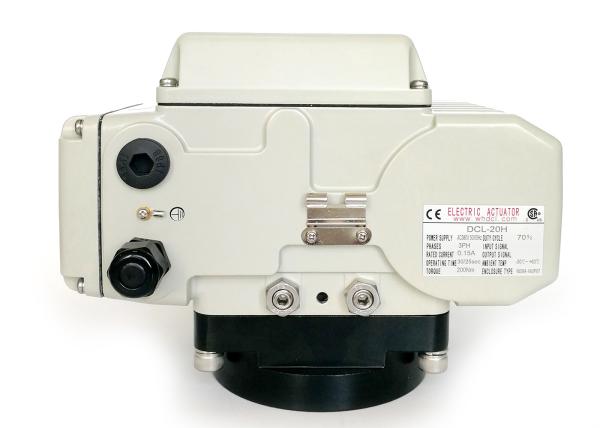

3 phase actuator powered by 3 phase AC with passive contact switch for valve position

Description

DCL compact electric actuators are most commonly used in HVAC field with butterfly valve. In many building automation systems, electric actuators are widely used to control indoor temperature, air conditioner air volume, water flow, condensate flow and hydraulic balance etc.

DCL H type control circuit and 3 phase AC motor is specially designed for actuator that can powered by 380VAC/440VAC, 50Hz/60Hz commonly used in heavy industry, such as power plant and steel plant. Similar to single phase powered actuator, on receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches and output a full open dry contact signal. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive.

Features

• 1/4 turn operation with self-locking
• Modulating type available with electric positioning system
• Automate ball valve and butterfly valve to adjust or cut off flow
• Class F insulating motor
• Heavy duty motor with thermal overload protection/duty rate 80%
• Over 10000 times full range life cycle with full rated load
• Resistance to extra low and high temperature and high moisture environment
• Two auxiliary limit switches to confirm valve position
• Standard manual handle
• Emergency local power off button optional
• Self-locking all metal gear with soft nitriding treatment, no additional brake needed
• CSA listed/UL complied/CE marked/RoHS 3.0 tested

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
