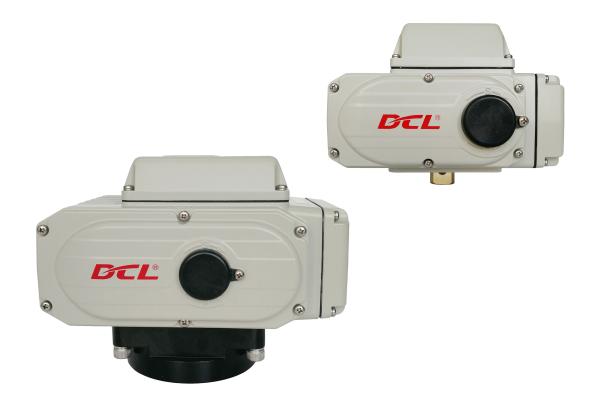

Modulating DC Brushless Quarter Turn Electric Actuator

DCL-10GE 40GE dimension and parameters.pdf

Features

• Modulating type powered by 24VDC
• Torque can be precisely setting within a certain range
• Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force
• Torque test control and over torque protection by current
• Compact smart resin plastic packaged proportional servo controller installed
• IP 67 robust aluminum alloy enclosure, protection against dust and water
• Manual override
• ISO5211 direct installation
• UL standard/CSA listed/CE marked/RoHS 3 complied

Description

DCL-10GE/40GE is powered by 24VDC and proportional controlled by 4-20mA or 2-10V input control signal. DC brushless motor has lots of advantage for actuator. Permanent magnet rotor makes the motor’s temperature rising is 20℃ lower than AC motor. Its frequently start-up causes very few fever. Actuator can reach 1200 times per hour operation with large start-up torque and strong overload capacity.

Moreover, DC brushless motor is non-mechanical friction and can provide reverse electromagnetic brake function. When positioning, the speed of motor will automatically slow down when set value is approaching, to improve positioning accuracy(error is less than ±1%) with lower vibration.

When valve is jammed and needs larger torque than normal, GE type actuator will automatically reverse back a bit, then rotate with lower speed and larger torque to push valve forward valve until valve move smoothly to normal speed.

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
