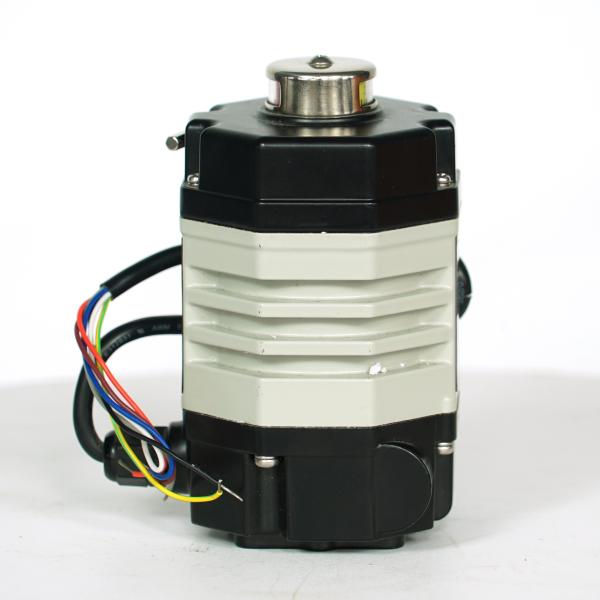

    Flange CSA RoHs 15S/18Nm Miniature Electric Actuator

    Ask Lasest Price
    Brand Name : DCL
    Model Number : DCL-02
    Certification : CE/ROHS/CSA/IP67
    Price :
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Flange CSA RoHs 15S/18Nm Miniature Electric Actuator

    15S / 18Nm Miniature Electric Actuator , CE CSA RoHs electric actuator


    Description

    DCL-02 series is widely applied in various automatic operation systems, such as: level, flow, pressure control, air-conditioning systems, fire fighting systems, water treatment systems, and applied to equipment, chemical industry and food machineries. It is matched with butterfly valves with diameter less than DN40 and ball valves with diameter less than DN32. It is suitable for many kinds of installation conditions with its super miniature in volume and any installation angle within 360.


    Product specification

    TypeDCL-02
    PowerDC24VAC24VAC110VAC220V
    Motor Power8W6W6W6W
    Rated Current0.7A1.3A0.3A0.15A
    Standard Time/Torque15S/18Nm
    Optional Time/Torque7S/9Nm 60S/18Nm
    Turning Angle or turns0~90°
    Available Control CircuitType GType of A,BType of A,B ,E ,
    Total Weight1.2kg
    Insulating Resistance100MΩ/250VDC100MΩ/500VDC
    Withstand Voltage Class500VAC 1 minute1500VAC 1 minute
    Protection ClassIP67
    Installation Angle360° at any angle
    Electric Interface7-core cable for connection
    Ambient Temperature-25~+55℃
    Fuse2A3A1A1A

    Features

    • Subminiature in Volume(Smaller than a pop Can)
    • Super Torque (18Nm/15S)
    • Super Protection Performance (Full Aluminum alloy Casing)
    • Can choose open display device of adjustable convex type
    • IP68 water-proof cable connector
    • Mannual operation handle
