Modulating 50Nm ExdIICT4 Explosion Proof Valve Actuator

Description

DCL-Ex05 explosion electric actuator can set turning angle up to 340 degree. Actuators are widely used in environment with explosive gas, such as Ethylene, Ether, Ethanol etc. Cylinder stop type connection surface of each housing cover complied to UL standard flame proof gap and length. The processing quality of flame proof surface is the key process to ensure explosion grade, so the machining tolerance range must be smaller than UL standard requirements. Thus, every explosion body or cover from supplier is strictly tested by DCL before assembling.

DCL actuators use self-designed motors that is non-ventilated and full enclosed with high start torque. Due to the very compact size of actuator, the temperature rise of motor must not be high during heavy duty operation, to make sure the outer shell’s temperature will not go beyond 135℃ or 300.6F.

Features

• Turning angle ≤360° adjustable with electric limit switches
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Stainless steel visual valve position indicator with 10mm tempered glass lens
• Hard die cast aluminum alloy enclosure to resistance to high explosive pressure inside
• Heavy duty fully enclosed squirrel-cage asynchronous motor with fire treatment
• Manual override with Allen handle/handwheel optional
• Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68
• Standard ISO 5211 direct mounting

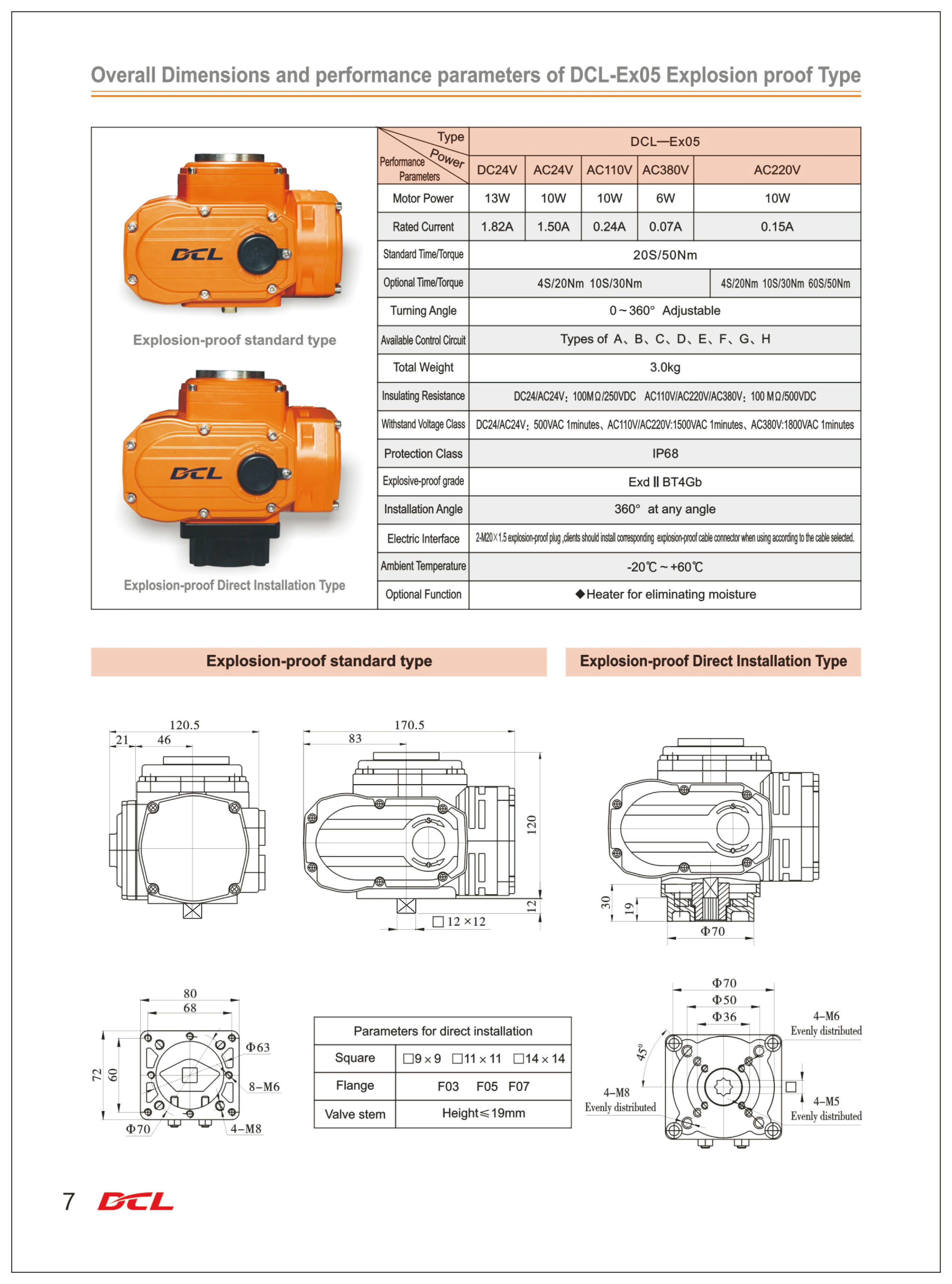

Specification

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
