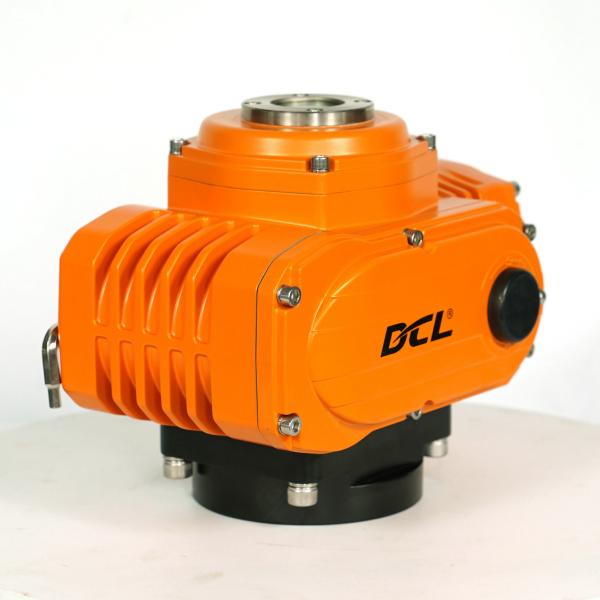

600Nm 1~5VDC 90W Modulating Explosion proof valve actuator

Features:

• Name: Explosion Proof Valve Actuator
• Type: Electric Actuator
• Power: AC110V/AC220V
• Explosive-proof Grade: Exd II CT4Gb
• Ambient Temperature: -20℃~+60℃
• Medium: Gas/Oil/Water/Other
• Output Torque: 600Nm
• Protection Class: IP68
• Motor Power: 90W
• Connection Form: Multi Flange Mounting

Specification

Control Circuit of Type E

The Servo-controller is located inside of the actuator. It receives command of the central control system and drives valve to proper opening position, according to varying conditions of variables(flow,pressure,temperature,fluid level) in the pipe.

Adopt character of service of S4 intermittent type, working frequency reaches 1200 times/hour.

Servo-Controller

The unique circuit design, imported electronic parts and components and modern making technology of circuit board of the DCL ensures high quality and reliability of the servo-controller. The circuit board with resin plastic package makes shock and humidity resistance better.The unique electronic brake function makes actuator dead-beat when position is fixed, the period of damping character is zero times(standard: Less than 3.5 times)

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
