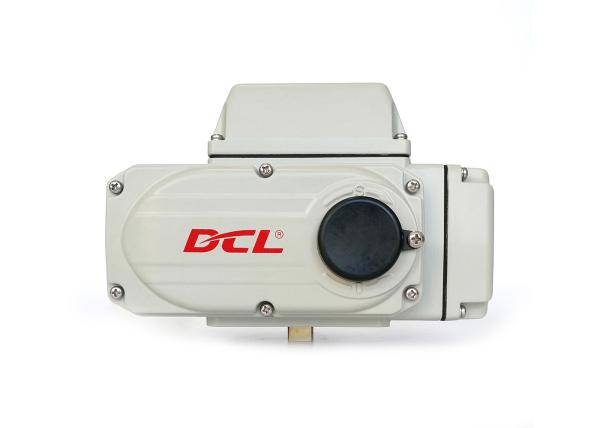

Large torque 3 phase actuator complied to UL standard with CSA certification

Features

• Heavy duty 3 phase AC motor with overheating protection
• Quarter turn operation with adjustable mechanical limits
• Modulating type available with electric positioning system
• Class F insulating heavy duty motor with thermal overload protection
• Smart control pack with one press auto calibrating function and problem self-checking
• Rugged IP67 and NEMA 4X aluminum alloy housing with powder coated
• Mechanical over torque protection optional
• Visual valve position indicator, flat or convex available
• ISO 5211 multi-flange direct mounting
• Manual override with Handle or declutching handwheel
• CSA certified per UL 429 and CSA C22.2, CE mark, DoC RoHS 3

Description

DCL-H series actuators are powered by 3 phase 380VAC or 440VAC, 50Hz/60Hz. Commonly used in heavy industry, such as power plant and steel plant. To ensure safety, motor is Class F insulating. All metal gear train with self-locking bronze alloy worm gear make actuators can drive over 10000 times full range life cycles with rated load. The motor is automatically stopped by internal cams striking limit switches and output a full open dry contact signal.

DCL 380VAC 3 phase electric actuator can be proportional driven by 4-20mA and 2-10V input control signal with a smart control pack. The actuator’s calibrating process does not need professional skill worker to manually operate, but only one easy press can complete self-calibrating. The positioning error is less than 1%.

Local power off button is optional to ensure safety before manual operation. Over torque protection can be chosen when coupling with ceramic valve, to avoid twisting off the valve stem. Thermostatic anticondensation heater is optional to protect actuator from moisture. Actuators are rigorous tested by CSA per UL and CSA standard, tested by SGS per CE and RoHS standard.

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
