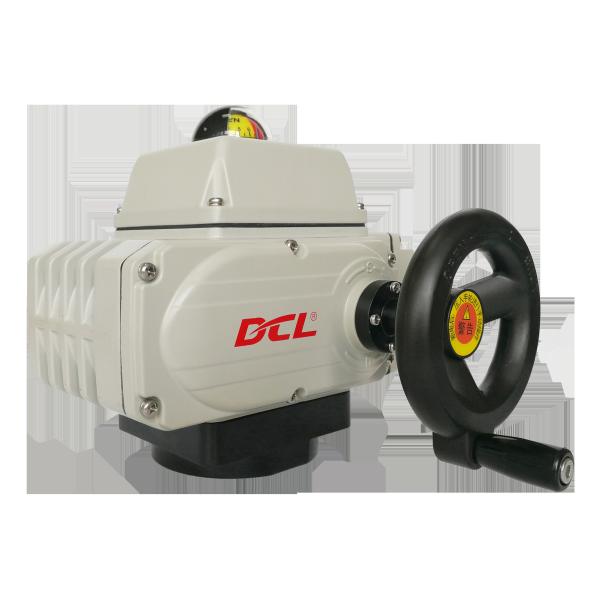

Dcl 110V Electric Control Actuator with Valve, Quarter Turn Actuator with handwheel

Feature:
Permanently Lubricated Heavy Duty Aluminum Alloy
Manual Override (except on the M25)
Adjustable Travel Stops
NEMA 4, 4X Weatherproof Enclosure
ISO 5211 Direct Mount Capabilities
1/2" NPT Conduit Entries (2),G1/2 water-proof cable
Thermal Overload Protection
80% Duty Cycle
4 Limit Switches
Standard 110V AC Single Phase Options

Type DCL-05 Series actuator Performance Parameters:

Motor power :24VDC 24VAC 110VAC 220VAC 380VAC
Standard time/Torque:25s/50Nm
Optional Time/Torque:4s/20Nm 10s/30Nm,60s/50Nm
Turning Angle: 0~360 degree
Total weight:2.0kg
Protection Class:IP67
Installation angle: 360degree at any angle
Electric interface:Two G1/2 water-proof Cable connectors, one for power line and one for signal line.
Optional Fuction : Heater for eliminating mositure
Square: 9*9 11*11 14*14
Flange: F03 F05 F07

Description

DCL common series electric actuator are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms. On receipt of a continuous power signal, the motor runs one direction and via an all metal gear box with last stage worm gear train rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.

Specification:

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
